Fire Engine Photos

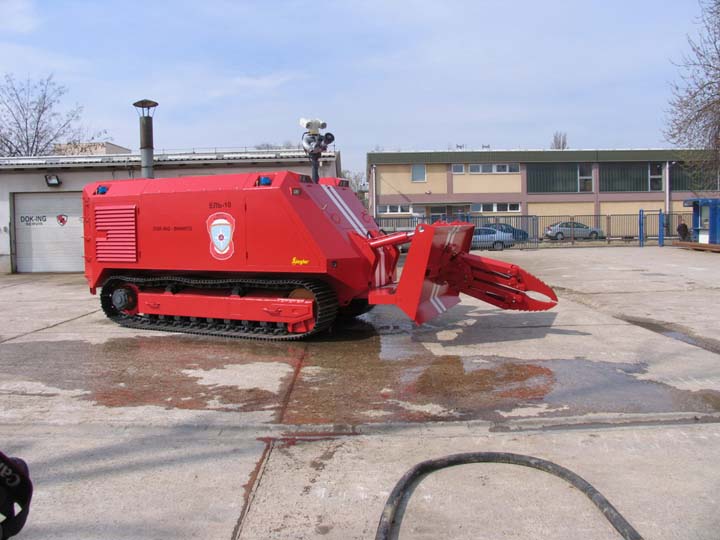

Jelka-10 special Firefighting unit
SYSTEM SPECIFICATIONS OF THE JELKA-10
TYPE : TLF 40 / 40 – 10
CHASIS : DOKING
BODYWORK : DOKING / ZIEGLER CROATIA
YEAR :2008.
CUSTOMER : MINISTRY OF THE INTERIOR RUSSIA
a. Dimensions
1. Prime Mover ................. 5310 x 2500 x 2447 mm
2. w/ tool (min)...................6688 x 2500 x 2500 mm
b. Water gun range
• water .....................90 m
• foam ......................70 m
c. Weight
• Metric ............................~ 16.4 t (dry)
• Metric.............................~22 t (full)
d. Engine Specifications
• Engine Type ................. 6 cylinder in-line, Electronic controlled governed turbo charged diesel, 4 stroke, direct injection, water cooled
• Make & Model............... MAN D2876 LE105
• Horse Power ................. 375 kW (525 hp) at 2200 rpm
• Direction of Rotation ..... Clockwise
• Torque .......................... 2350 Nm at 1300 rpm
• Engine Weight .............. 1000 kg (dry),
• Cooling Capacity .......... 80l
• Oil Capacity ..... 40 l
• Fuel Tank Capacity....... 300 l
• Fuel Consumption ........ 20 – 40 l/hour
e. Transmission - Hydrostatic system
• Hydraulic Fluid .............. 300 l
• Track Gear Box Oil ....... 2 x 1,2 l
• Max driving speed ........ 10 km/h
• Working pressure..........400 bar
f. Fire system Specifications
• Water pump .....4000 l/min
• Water gun....... 3600 l/min
• Water tank........4000 l
• Foam tank........1000 l
SYSTEM SPECIFICATIONS OF THE JELKA-10
TYPE : TLF 40 / 40 – 10
CHASIS : DOKING
BODYWORK : DOKING / ZIEGLER CROATIA
YEAR :2008.
CUSTOMER : MINISTRY OF THE INTERIOR RUSSIA
a. Dimensions
1. Prime Mover ................. 5310 x 2500 x 2447 mm
2. w/ tool (min)...................6688 x 2500 x 2500 mm
b. Water gun range
• water .....................90 m
• foam ......................70 m
c. Weight
• Metric ............................~ 16.4 t (dry)
• Metric.............................~22 t (full)
d. Engine Specifications
• Engine Type ................. 6 cylinder in-line, Electronic controlled governed turbo charged diesel, 4 stroke, direct injection, water cooled
• Make & Model............... MAN D2876 LE105
• Horse Power ................. 375 kW (525 hp) at 2200 rpm
• Direction of Rotation ..... Clockwise
• Torque .......................... 2350 Nm at 1300 rpm
• Engine Weight .............. 1000 kg (dry),
• Cooling Capacity .......... 80l
• Oil Capacity ..... 40 l
• Fuel Tank Capacity....... 300 l
• Fuel Consumption ........ 20 – 40 l/hour
e. Transmission - Hydrostatic system
• Hydraulic Fluid .............. 300 l
• Track Gear Box Oil ....... 2 x 1,2 l
• Max driving speed ........ 10 km/h
• Working pressure..........400 bar
f. Fire system Specifications
• Water pump .....4000 l/min
• Water gun....... 3600 l/min
• Water tank........4000 l
• Foam tank........1000 l
Other
It most be remotely operated, by radio signal.
An obvious use must be during weapons confrontations, terrorists situations, where human fire-fighters would be exposed to gun-fire.
Does it operate in dangerous/inflamable gas atmospheres, like oil field fires;
can it withstand high temperatures?
Obviously, it must be brought to the fire-scene on a low-loader trailer.
On a lighter note; it would be a little dangerous to leave around the fire-house for the crews to practise on - looks like it could do some serious damage very quickly.....that big 'claw'. "Whoops, sorry about that, Chief, it got away on us"
Regards,
