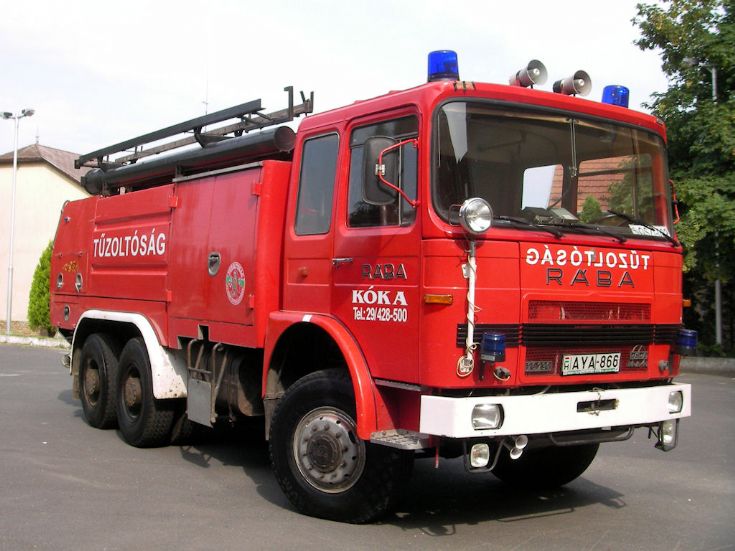

Name: "Rába T�-3 water supplier"

Type:
Rába-Man U. 26,230

Engine:
Rába - MAN 2156 HM6

Nominal power: 230 HP
Nominal power: 196 kW
Number of cylinders: 6
Arrangement of cylinders: serial, decided 40
Total capacity: 10.688cm
Max speed: 64 km / h

Braking:
Dual-Air brakes

Dimensions:
Length: 8250 mm
Width: 2500 mm
Height: 3300 mm
Weight: 22,500 kg

Number of persons transported: 1 + 3 people
Pumps
Rosenbauer R480 II
Pressure: normal
Fluid movement: 4500 liters / min.

Water tank:
6000 liters

Foam tank:
600 liters

Heart nozzles: 2 x 'A'
Pressure nozzles: 6 x "B"

Foam-water cannon
- Type: Rosenbauer RM24
- Performance: 1600/2400 liters / min.
